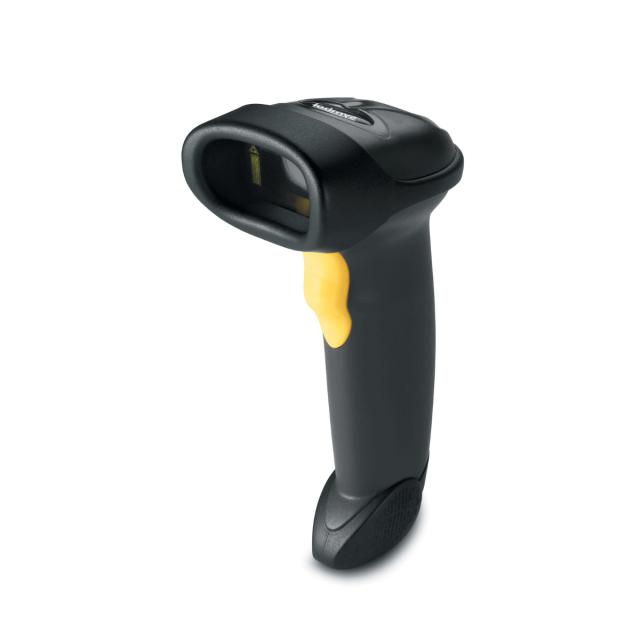

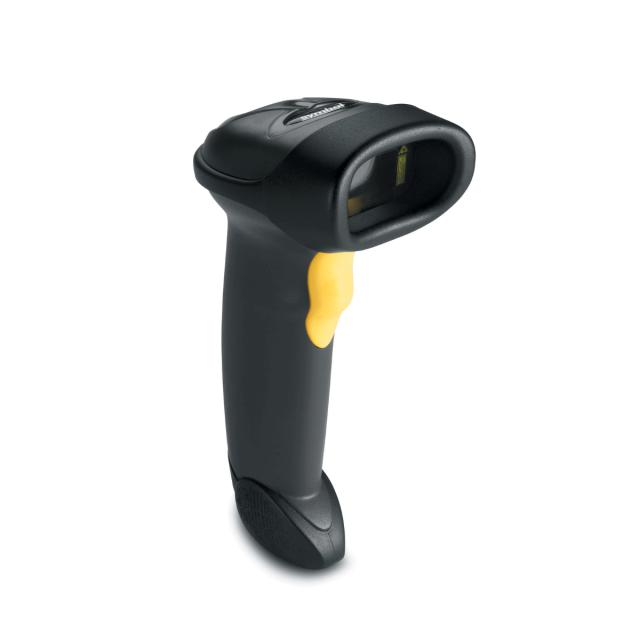

Zebra LS2208-SR Handheld Scanner - USB - Stand
LS2208-SR20007R-UR
SIGN IN BELOW TO SEE PRICES
100+ In stock
EAN: 5711045247927
Product Description
- The LS2208 handheld laser scanner is a versatile and durable solution for businesses seeking efficient barcode scanning. With its patented construction, high-density barcode capture capability, and support for international keyboards, this scanner offers reliability and flexibility.
-
Physical Characteristics
- Dimensions: 6.0 in. H x 2.5 in. W x 3.3 in. D 15.2 cm. H x 6.4 cm. W x 8.5 cm. D
- Weight: 5.3 oz./150.0 g
- Input Voltage Range: 4.5 to 5.5 VDC host powered; 4.5 to 5.5 VDC external power supply
- Operating Current at Nominal Voltage (5.0V): 175 mA (typical)
- Standby Current (idle) at Nominal Voltage (5.0V): 90 mA (typical)
- Supported Host Interfaces: USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
- Keyboard Support: Supports over 90 international keyboards
- User Indicators: Direct decode indicator, good decode LEDs, beeper (adjustable tone/volume)
- Light Source: 650 nm Laser Diode Class 2
- Scan Pattern: Single line
- Scan Speed: 100 scans per second
- Scan Angle: 35°
- Minimum Print Contrast: 20% minimum reflective difference
- Skew Tolerance: ± 10°
- Pitch Tolerance: ± 65°
- Roll Tolerance: ± 60
- Operating Temperature: 32° to 122° F/0° to 50° C
- Storage Temperature: -40° to 158° F/-40° to 70° C
- Humidity: 5% - 95% RH, non-condensing
- Drop Specification: Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
- Tumble Specification: Designed to withstand 500 tumbles in 1.64 ft./0.5 m tumbler
- Environmental Sealing: IP30
- Electrostatic Discharge (ESD): ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect
- Ambient Light Immunity: 0 to 8,000 Foot Candles / 0 to 86,080 Lux; tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions; Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED4: 450 Ft. Candles (4,844 Lux) Sunlight: 8000 Ft. Candles (86,111 Lux)
- Scanning Technology: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma). Refer to Product Reference Guide for complete list of symbologies
- Minimum Element Resolution: Code 39: 3.0 mil
- Electrical Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011; IEC 60950-1: 2005 + A1: 2009; UL 60950-1, second edition; CAN/CSA-C22.2 No. 60950-1-07
- EMI/RFI: FCC 47 CFR Part 15, Subpart B, Class B; ICES-003 Issue 4, Class B; Compliant with EMC Directive 2004/108/EC
- Laser Safety: CDRH Class II; IEC Class 2
- Environmental: Compliant with RoHS Directive 2011/65/EU; EN 50581: 2012
-
Durable Construction
Reliable all-day, every day operation with patented single board construction, patented frictionless liquid polymer scan element and scratch-resistant tempered glass exit window
Decode Feedback Options
Multiple options to indicate successful barcode capture and options include a blinking laser line, beep tone, and LED indicator
All-Day Comfort
Ergonomic and lightweight balanced design, reduced user fatigue and increased productivity
Flexible Operation
Switch between hands-free and handheld modes quickly
Advanced Data Formatting (ADF)
Format data before sending it to the host computer and eliminates the need for costly host software modifications
