HP USB-C Dock 65W G5
72C71AA#ABB
SIGN IN BELOW TO SEE PRICES
ETA is currently unavailable
EAN: 0197029013002
Product Description
- Enhance your workspace and streamline productivity with the HP USB-C G5 Essential Dock. This compact dock not only declutters your desk but also offers seamless connectivity for all your accessories, multiple high-res displays, and efficient charging for your laptop—all through a single USB-C® cable.
-
Compatibility
- Tested and supported on select commercial HP notebooks. Check HP notebook compatibility at: pcb.inc.hp.com/webapp/#!/us-en by searching for your specific notebook.
- Tested and supported on the following 3rd party notebooks: Apple MacBook Air Retina 2020, Google Pixelbook Go, Google Pixlebook Go 2, Apple MacBook Pro M1 2020, MacBook Air M1 2020, and Dell Latitude 7420.
- (ABB) 197029013002
- (ABU) 197029013040
Plastic

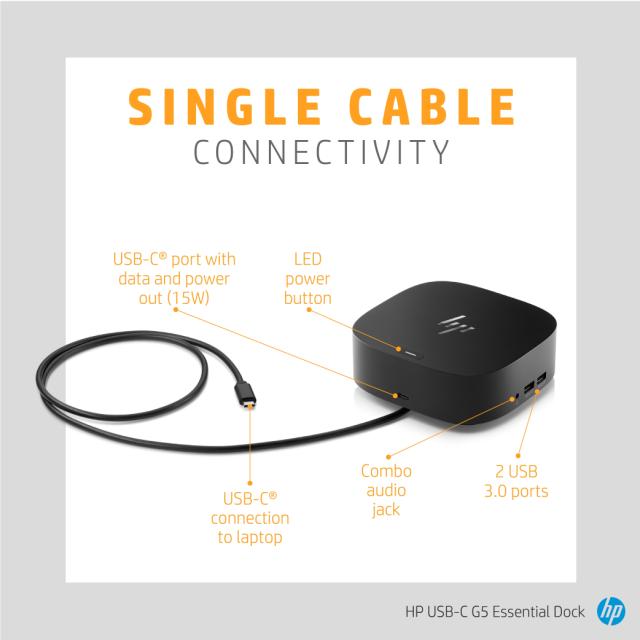

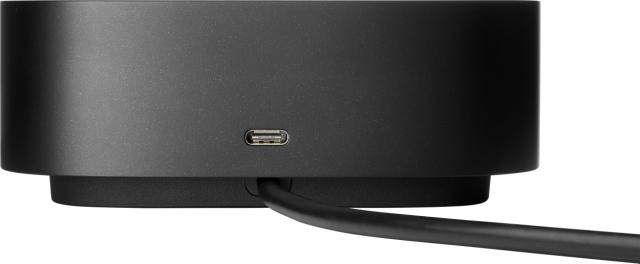

Port and Connectors Front:- 1 SuperSpeed USB Type-C®️ 5Gbps signaling rate (up to 15 W USB Power Delivery)
- 2 SuperSpeed USB Type-A 5Gbps signaling rate (charging)
- 1 combo audio jack
- 2 DisplayPort™ 1.4
- 1 HDMI 2.0
- 1 RJ-45
- 2 SuperSpeed USB Type-A 5Gbps signaling rate (charging)
- 1 x 4.5 mm
120 W power adapter

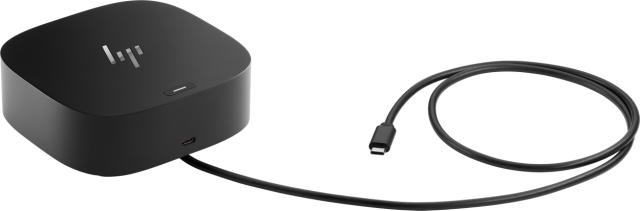

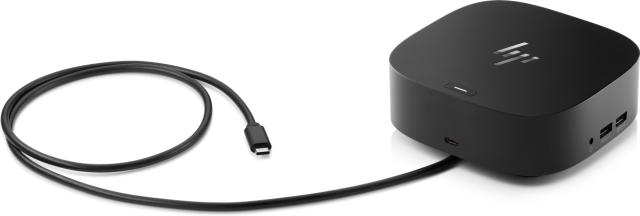

Connection Type1 front USB Type-C® cable to connect to the host system (up to 65 W USB Power Delivery)
Physical Security- 1 Standard Kensington lock slot
- PXE Boot
- Wake on LAN (WoL)
- MAC Address Pass Through (MAPT)
- LAN/WLAN switching
- Connected firmware update
- Up to 65 W via USB Type-C®️ (both HP and non-HP host devices)
- 12V/5A; 5V/3A; 9V/3A; 15V/4.33A/20V/3.25A
- 1 m
- For hosts that support DisplayPort™ 1.4 with Display Stream Compression: 3x FHD @ 60 Hz; 3x QHD @ 60 Hz; 3x 4K UHD @ 60 Hz
- For hosts that support DisplayPort™ 1.3/1.4: 3x FHD @ 60 Hz; 3x QHD @ 60 Hz; 2x 4K UHD @ 60 Hz
- For hosts that support DisplayPort™ 1.2: 3x FHD @ 60 Hz; 2x QHD @ 60 Hz; 1x 4K UHD @ 60 Hz

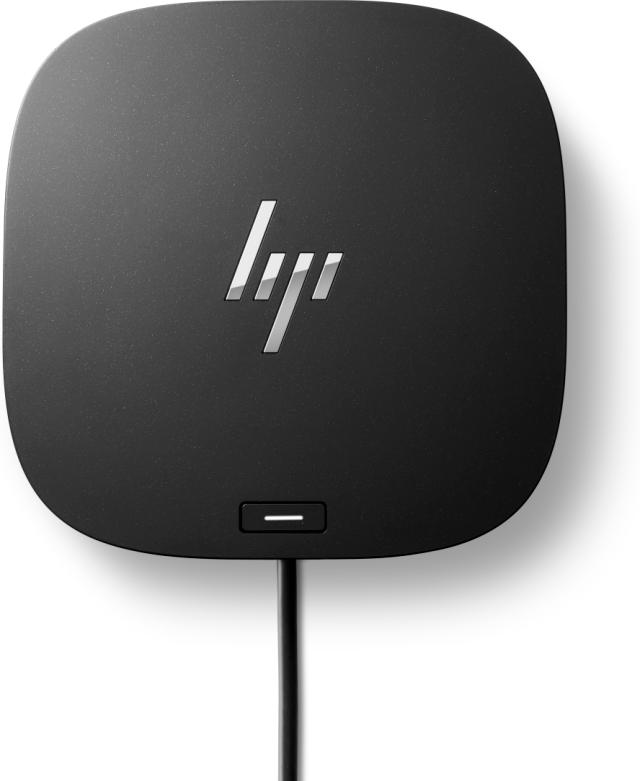

- Mechanical power button with LED indicator to power or wake the host system
Black
Compatible Operating SystemsWindows 11 21H2; Windows 11 22H2; Windows 10 21H2; Windows 10 22H2; ChromeOS™ v103 and later; macOS Monterey 12.4 and later; macOS Big Sur 11.6
System Requirements (Minimum)- USB Type-C®️ (USB Power Delivery, Alt Mode DisplayPort™)

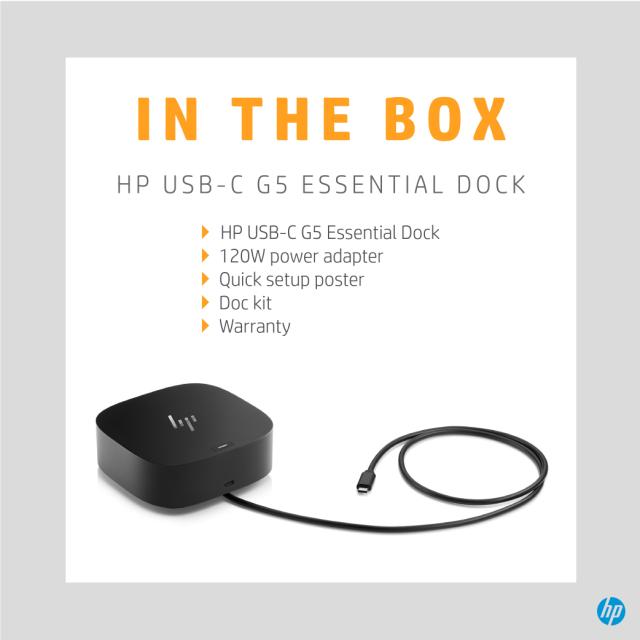

- HP USB-C G5 Essential Dock
- 120 W Power adapter
- AC power cord
- Quick Setup Poster
- Warranty card

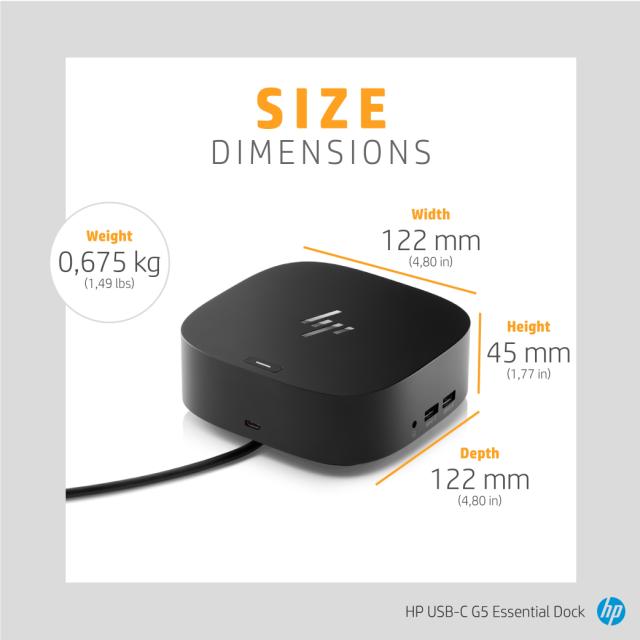

(W x D x H) 122 x 122 x 45 mm
Weight0.68 kg
-
Seamless Productivity
Effortlessly boost your productivity with the HP USB-C G5 Essential Dock. A single USB-C® cable powers 4 USB-A ports, supports up to 3 high-res displays, and provides a stable Ethernet connection—all while delivering 65W of power to your laptop.
More Ports, Less Constraints
Designed to adapt to your setup, this essential dock is compatible with most USB-C® or Thunderbolt™ enabled PCs. Its versatile ports open the gateway to seamless connectivity with all your accessories.
Stay up to date
Keep your workforce current with connected firmware updates for your docking fleet, ensuring optimal performance and security.
Essential Manageability
Empower your workforce with essential manageability features. Manage your docking fleet effortlessly with PXE boot, MAC address pass-through, Wake on LAN, and LAN/WLAN switching.
Connected Firmware Update
IT professionals can efficiently manage dock firmware updates while connected to the host PC, ensuring the latest enhancements and security patches.
PXE Boot
Enable remote setup of employees' devices by booting computers via a network interface, providing IT with convenient control.
LAN/WLAN Switching
Experience uninterrupted connectivity as the dock automatically turns off WLAN antennae when connected to the LAN cable, seamlessly transitioning between wired and wireless connections.
MAC Address Pass-Through
Simplify fleet management by easily identifying and tracking your notebook fleet through the dock's LAN with full MAC address pass-through functionality.
Wake-on-LAN
Facilitate system updates and remote imaging, even when the computer is off or in sleep mode, ensuring continuous IT support.
