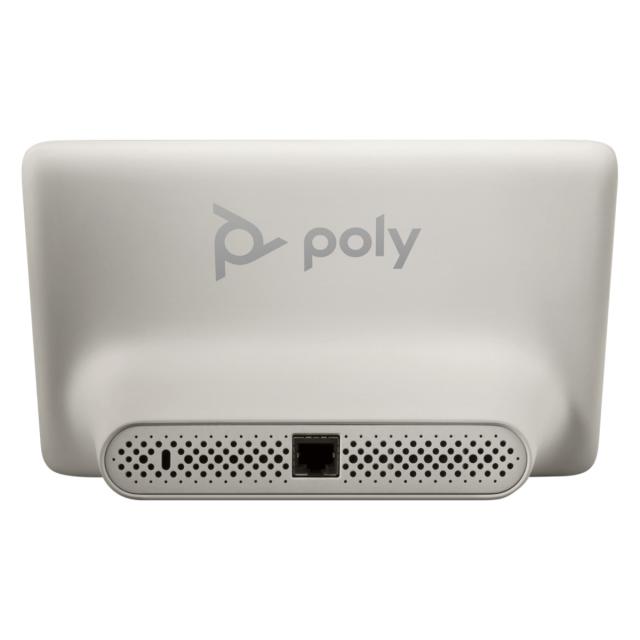

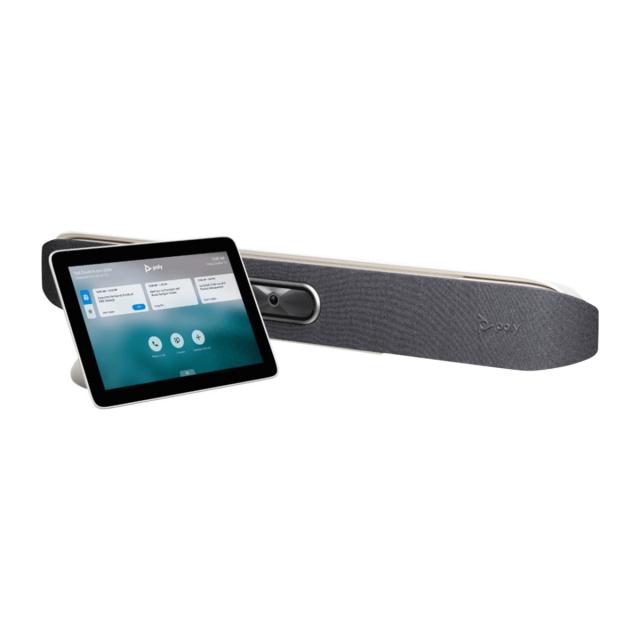

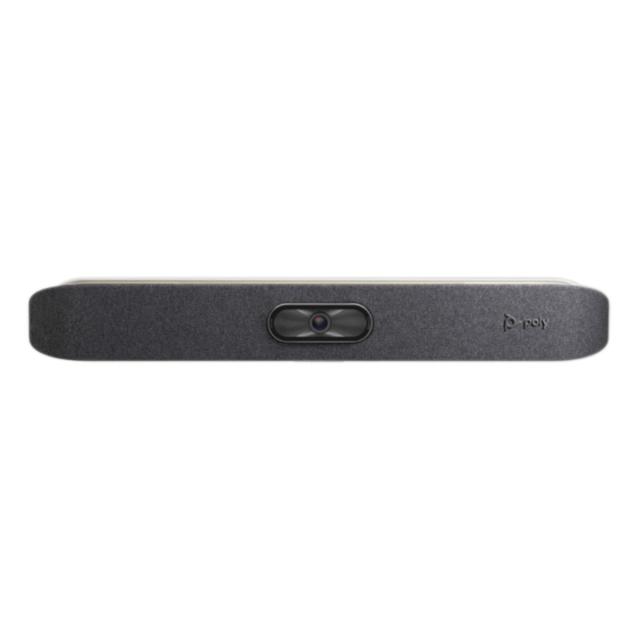

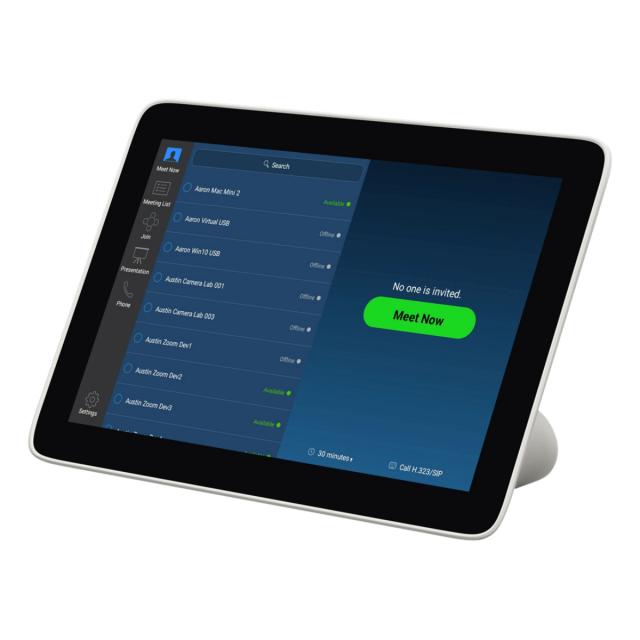

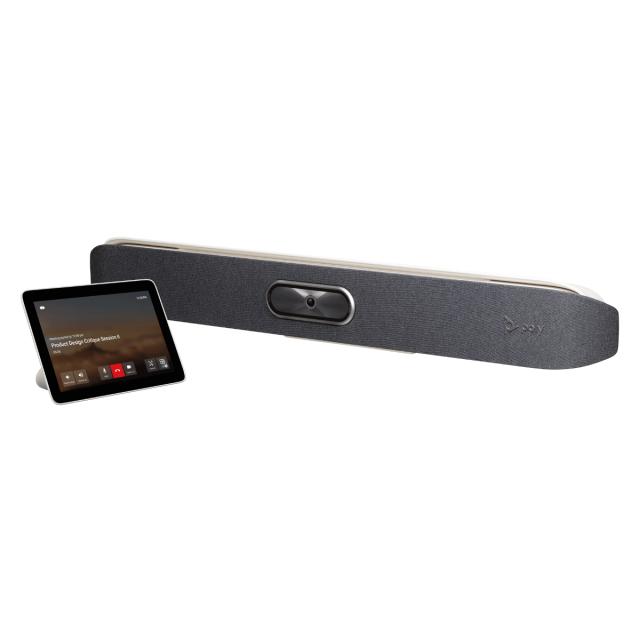

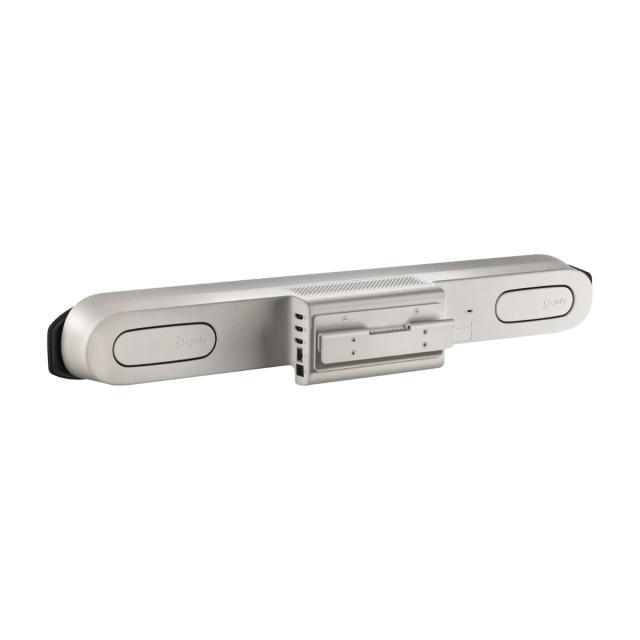

Poly Studio X50 - Video conferencing kit W. TC8
2200-86270-101
SIGN IN BELOW TO SEE PRICES
ETA is currently unavailable
EAN: 0610807895381
Product Description
-
POLY Studio X50 + TC8. Product type: Video collaboration bar, Number of persons: 10 person(s). HD type: 4K Ultra HD, Supported video modes: 720p, 1080p, 2160p, Maximum frame rate: 60 fps. Field of view (FOV) angle: 120°, Digital zoom: 5x. Ethernet LAN, Wi-Fi. Bluetooth. Display: LCD, Display diagonal: 20.3 cm (8"), Display resolution: 1280 x 800 pixels. Product colour: Black
Poly Studio X50 video bar, 1x HDMI in, 2x HDMI out, 1x USB 3.0, 1x USB-C, WiFi 802.11a/b/g/n/ac, Bluetooth 5.0, 2.54 kg + Poly TC8 touch control
-
Package includes:
• Poly Studio X50
• Power supply
• HDMI cable
• Ethernet cable
• Wall mount
• Privacy cover
VIDEO STANDARDS AND PROTOCOLS
• H.264 AVC, H.264 High Profile, H.265, H.239
VIDEO INPUT
• 1x HDMI
VIDEO OUT
• 2x HDMI
• Touch display compatible
PEOPLE VIDEO RESOLUTION
• 4K, 30 fps (TX and RX) from 2048 Kbps
• 1080p, 60 fps from 1740 Kbps
• 1080p, 30 fps from 1024 Kbps
• 720p, 60 fps from 832 Kbps
• 720p, 30 fps from 512 Kbps
CONTENT VIDEO RESOLUTION
• Input
- UHD (3840 x 2160)
- HD (1920 x 1080p)
- WSXGA+ (1680 x 1050)
- UXGA (1600 x 1200)
- SXGA (1280 x 1024)
- WXGA (1280 x 768)
- HD (1280 x 720p)
- XGA (1024 x 768)
- SVGA (800 x 600)
• Output
- UHD (3840 x 2160)
- WUXGA (1920 x 1200)
- HD (1920 x 1080)
- WSXGA+ (1680 x 1050)
- SXGA+ (1400 x 1050)
- SXGA (1280 x 1024)
- HD (1280 x 720)
- XGA (1024 x 768)
CONTENT FRAME RATE
- 5–60 fps (up to 4K resolution at 15 fps in call)
CONTENT SHARING
• Apple Airplay
• Miracast
• HDMI input
• Whiteboarding
CAMERA
• 121° DFOV, 110° HFOV
• 5x digital zoom
• UHD 2160p (4K) capture resolution
• Automatic meeting experience powered by Poly DirectorAI including group framing and speaker framing
• Secondary cameras can be added via USB and HDMI
AUDIO
• Poly NoiseBlockAI technology
• Poly Acoustic Fence technology
AUDIO INPUT
• 3x MEMS microphones, plus 2x 2nd order microphones
• 1x HDMI
• 1x 3.5 mm line-in
• Input for optional expansion microphone
MICROPHONES
• 3x MEMS microphones, plus 2x 2nd order microphones
• Up to 25 ft of microphone pick up range
• Optional expansion microphone available (p/n 2200-69631-001)
AUDIO OUTPUT
• Stereo speakers
- Power Handling (RMS) 20 Watts
- Power Handling (MAX) 40 Watts
- Sensitivity 86.1 dB
• 3.5 mm audio output
• 1x HDMI
OTHER INTERFACES
• 2x USB-A (3.0)
• 1x USB-C
• Bluetooth® 5.0*
• WiFi 802.11a/b/g/n/ac (MIMO) Multi-channel Concurrency*
AUDIO STANDARDS AND PROTOCOLS
• 22 kHz bandwidth with Polycom Siren 22 technology
• 20 kHz bandwidth with G.719 (M- Mode) and Polycom Siren 22 technology
• 14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C
• 7 kHz bandwidth with G.722, G.722.1
• 3.4 kHz bandwidth with G.711, G.728, G.729
NETWORK
• IPv4
• IPv6
• 1x 10/100/1G Ethernet
• Auto-MDIX
• H.323 and/or SIP up to 6 Mbps running Poly Video App
• Polycom Lost Packet Recovery (LPR) technology
• Dynamic bandwidth allocation
• Reconfigurable MTU size
• Web proxy support—Basic, Digest, and NTLM
SECURITY
• Media encryption (H.323, SIP): AES-128, AES-256
• H.235.6 support
• Authenticated access to admin menus, web interface, and API
• BFCP
• Local account password policy configuration
• Security profiles
• Local account and login port lockout
• Secure defaults
• Remote logging with support for TLS
• Active directory external authentication
OPTIONS
• VESA mount kit
• Stand
• Poly TC8
• Poly TC10
• Poly Bluetooth remote control
• Poly Trio
• Studio Extension Microphone
• TAA, JITC and no radio versions available*
INTEROPERABILITY
• Zoom Certified
• Microsoft Teams Certified
• Google Meet Certified
• All cloud service providers through Poly Video App Mode
• USB device mode
• Support for native 3rd party applications includes Zoom, Microsoft Teams, Google Meet, BlueJeans, Dialpad, GoToRoom, RingCentral and Tencent (China only)
DIGITAL SIGNAGE
• Raydiant
• Appspace
ELECTRICAL
• Auto sensing power supply
• Typical operating voltage/power
- 37 VA @ 120 V @ 60 Hz
- 37 VA @ 230 V @ 50/60 Hz
• Typical BTU/h: 65
ENVIRONMENTAL SPECIFICATION
• Operating temperature: 0 to 40 °C
• Operating humidity (non-condensing): 15 to 80%
• Non-operating temperature: -40 to 70 °C
• Non-operating humidity (non-condensing): 5 to 95%
• Maximum altitude: 16,000 ft
PHYSICAL CHARACTERISTICS
• 30 W x 4 H x 4 D (Inches) 762 W x 102 H x 102 D (MM)
• 5.6 lbs/2.54 kg
-
BENEFITS
• Quick Setup
Transform any mid-sized meeting room effortlessly with a simple setup process and all-in-one design.
• Crystal Clear Details
Capture every detail with precision using the 4K UltraHD 120-degree FOV camera.
• Immersive Audio
Immerse everyone in rich, legendary sound with stereo speakers that fill the room with audio.
• Seamless Integration
Dive into seamless native experiences across all leading cloud video apps without the need for a PC or separate gateway.
• Pinpoint Accuracy
Ensure everyone stays visible with Poly DirectorAI's precise automatic framing technologies.
• Noise-Free Meetings
Keep distractions at bay with Poly NoiseBlockAI and Acoustic Fence technologies, preventing interruptions from background noises and side conversations.
